GPUart_Scheduler.h File Reference

Interface to the GPUart Scheduling layer. More...

#include "../GPUart_Common/GPUart_Common.h"
#include "../GPUart_Config/GPUart_Config.h"

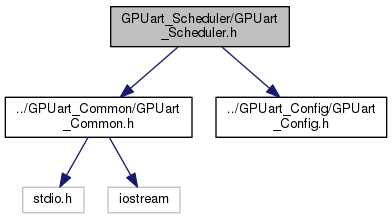

Include dependency graph for GPUart_Scheduler.h:

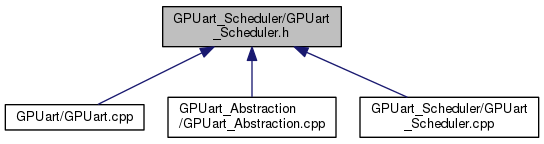

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations
enum	gpuS_kernelTask_status_e { E_STATUS_READY = 0, E_STATUS_RUNNING = 1, E_STATUS_TERMINATED = 2, E_STATUS_INIT = 3 }
	The possible scheduling states of a kernel. More...

Functions
GPUart_Retval	gpuS_schedule (void)
	Executes the scheduling decision. More...
GPUart_Retval	gpuS_new_Job (kernel_task_id_e task_id_e)
	Releases a new job and pushes it to the shared job stack gpuS_JobStackShared_s. More...
GPUart_Retval	gpuS_query_terminated (kernel_task_id_e task_id_e)
	Queries whether a job has terminated. More...
GPUart_Retval	gpuS_query_ready_to_call (kernel_task_id_e task_id_e)
	Queries whether a kernel is ready to get instantiated. More...
GPUart_Retval	gpuS_init (void)
	Initializes the GPUart Scheduling layer. More...
GPUart_Retval	gpuS_destroy (void)
	Destroys the GPUart Scheduling layer. More...

Detailed Description

Interface to the GPUart Scheduling layer.

Author

Christoph Hartmann

Date

Created on: 3 Apr 2017

Enumeration Type Documentation

enum gpuS_kernelTask_status_e

The possible scheduling states of a kernel.

Every job starts with status E_STATUS_INIT. The possible transitions are E_STATUS_INIT -> E_STATUS_READY or E_STATUS_TERMINATED -> E_STATUS_READY when a kernel gets instantiated; E_STATUS_RUNNING -> E_STATUS_READY when a job has been preempted; E_STATUS_READY -> E_STATUS_RUNNING when the scheduler schedules a job; and E_STATUS_RUNNING -> E_STATUS_TERMINATED when a job completes.

Enumerator
E_STATUS_READY	Kernel is active, but not running on the GPU.
E_STATUS_RUNNING	Kernel is currently running on the GPU
E_STATUS_TERMINATED	Kernel has been completed
E_STATUS_INIT	Initial state at system startup

Function Documentation

GPUart_Retval gpuS_destroy

(

void

)

Destroys the GPUart Scheduling layer.

Destroys the mutex of each job_stack_s.

Returns

GPUART_SUCCESS

Here is the caller graph for this function:

GPUart_Retval gpuS_init

(

void

)

Initializes the GPUart Scheduling layer.

Initializes all variables of the Scheduling layer.

Returns

GPUART_SUCCESS

Here is the call graph for this function:

Here is the caller graph for this function:

GPUart_Retval gpuS_new_Job

(

kernel_task_id_e

task_id_e

)

Releases a new job and pushes it to the shared job stack gpuS_JobStackShared_s.

Parameters

kernel_task_id_e

task_id_e -> The ID of the kernel which this function instatiates.

Returns

GPUART_SUCCESS if kernel has been instantiated successfully.

GPUART_ERROR_INVALID_ARGUMENT if kernel ID is invalid.

GPUART_ERROR_NO_OPERTATION if there is already an active instance (job) of that kernel.

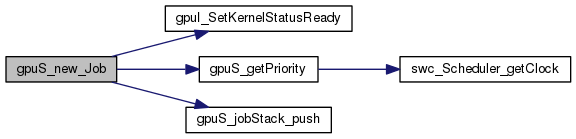

Here is the call graph for this function:

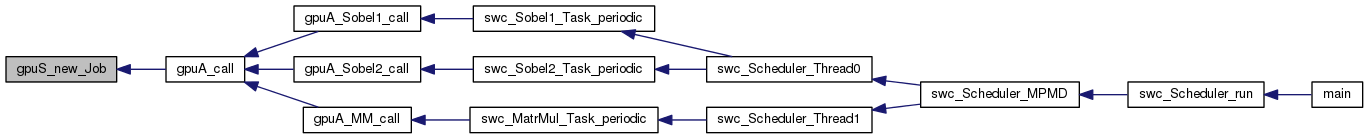

Here is the caller graph for this function:

GPUart_Retval gpuS_query_ready_to_call

(

kernel_task_id_e

task_id_e

)

Queries whether a kernel is ready to get instantiated.

Parameters

kernel_task_id_e

task_id_e -> The ID of the kernel.

Returns

GPUART_SUCCESS if kernel can get instantiated.

GPUART_ERROR_NOT_READY if there is already an active instance (job) of that kernel.

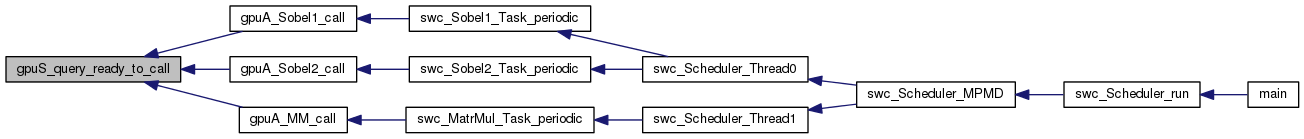

Here is the caller graph for this function:

GPUart_Retval gpuS_query_terminated

(

kernel_task_id_e

task_id_e

)

Queries whether a job has terminated.

Parameters

kernel_task_id_e

task_id_e -> The ID of the kernel.

Returns

GPUART_SUCCESS if kernel has been terminated

GPUART_ERROR_NOT_READY if kernel is still active.

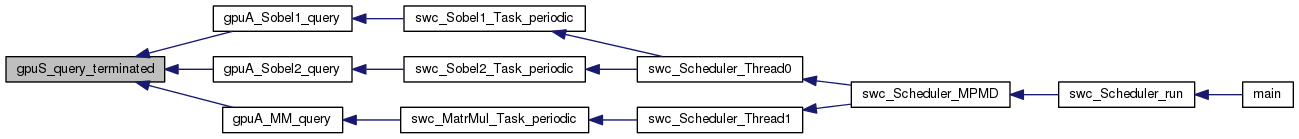

Here is the caller graph for this function:

GPUart_Retval gpuS_schedule

(

void

)

Executes the scheduling decision.

If the compiler switch S_NON_PREEMPTIVE is defined, this function schedules kernel non-preemptively, otherwise it schedules them in a limited preemptive manner. First this function updates the kernel's scheduling state and deletes completed kernels form gpuS_JobList_s, then it updates the job list gpuS_JobList_s with all new released kernels. After that, this function iterates through gpuS_JobList_s and executes the scheduling decision according to the scheduling policy defined in S_SCHED_POLICY.

Returns

GPUART_SUCCESS

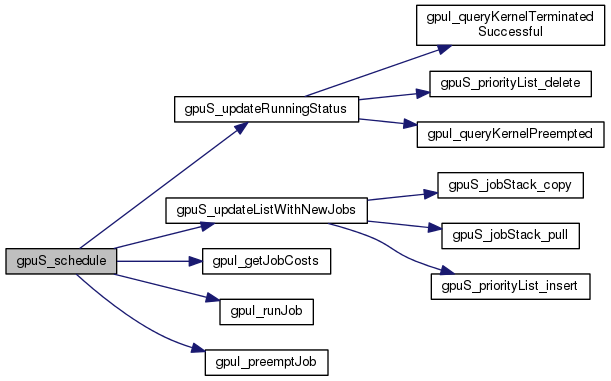

Here is the call graph for this function:

Here is the caller graph for this function:
