GPUart_Impl.cu File Reference

Implementation of the management component of the GPUart Implemenation layer. More...

#include "GPUart_Impl.cuh"
#include "GPUart_Impl.h"
#include "GPUart_Impl_Abstr_IF.h"
#include "GPUart_Impl_Sched_IF.h"
#include "GPUart_Sobel.cuh"
#include "GPUart_MatrMul.cuh"

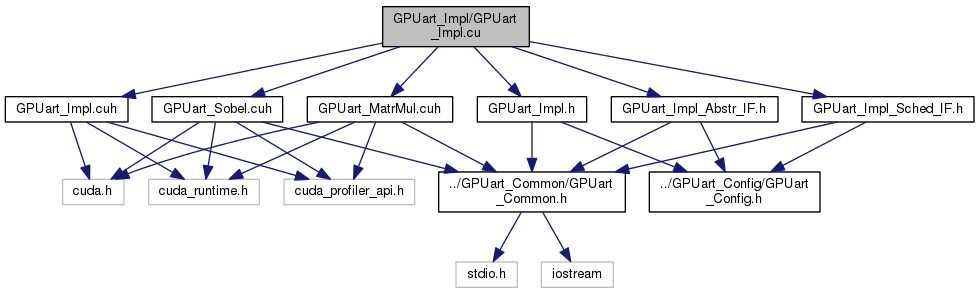

Include dependency graph for GPUart_Impl.cu:

Classes

struct  device_global_memory_s
 Typedef for a struct which combines global memory pointers, their related host pointers, and the size of the memory buffer. More...

struct  device_constant_memory_s
 Typedef for a struct which combines constant memory pointers and the size of the related memory buffer. More...


Macros

#define S_USE_ZERO_COPY_FOR_GLOBAL_APPLICATION_MEMORY
 Use zero copy memory (requires integrated GPU) More...

#define C_PERSISTENT_KERNEL_EVENT_QUEUE_LENGTH   (10)
 The length of the Event Queue, shared between GPU and CPU, used for kernel launch events. More...

#define C_PERSISTENT_KERNEL_TERMINATE   (-1)
 Event ID to indicate a termination request for the persistent kernel. More...


Typedefs

typedef cudaStream_t command_queue_s
 Typedef for command queues (streams) to abstract GPGPU-API. More...


Functions

__global__ void GPUart_Persistent_Kernel (uint32 *__restrict__ perKer_isRunning_u32_g, uint32 *__restrict__ perKer_eventQueueCntDevice_u32_g, volatile uint32 *__restrict__ perKer_eventQueueCntHost_u32_g, volatile sint32 *__restrict__ perKer_eventQueue_s32_g, volatile uint32 *__restrict__ perKer_kernelTasksRunningStates_u32_g, sint32 *__restrict__ sob1_matrix_in_s32_g, sint32 *__restrict__ sob1_matrix_out_s32_g, sint32 *__restrict__ sob2_matrix_in_s32_g, sint32 *__restrict__ sob2_matrix_out_s32_g, float32 *__restrict__ mm_matrix_A_f32_g, float32 *__restrict__ mm_matrix_B_f32_g, float32 *__restrict__ mm_matrix_C_f32_g, uint32 *__restrict__ sync_SOB1_flags_in_u32_g, uint32 *__restrict__ sync_SOB1_flags_out_u32_g, uint32 *__restrict__ sync_SOB2_flags_in_u32_g, uint32 *__restrict__ sync_SOB2_flags_out_u32_g, uint32 *__restrict__ sync_MM_flags_in_u32_g, uint32 *__restrict__ sync_MM_flags_out_u32_g, sint32 *__restrict__ preempt_SOB1_flag_g, sint32 *__restrict__ preempt_SOB1_flag_internal_g, sint32 *__restrict__ preempt_SOB1_sm_g, sint32 *__restrict__ preempt_SOB2_flag_g, sint32 *__restrict__ preempt_SOB2_flag_internal_g, sint32 *__restrict__ preempt_SOB2_sm_g, sint32 *__restrict__ preempt_MM_flag_g, sint32 *__restrict__ preempt_MM_sm_g, uint32 *__restrict__ sob1_buffer_loop_counter_u32_g, uint32 *__restrict__ sob2_buffer_loop_counter_u32_g, uint32 *__restrict__ mm_buffer_blockY_g, uint32 *__restrict__ mm_buffer_blockX_g, uint32 *__restrict__ mm_buffer_M_g)
 The persistent kernel (GPU Daemon) which is used to reduce kernel launch latencies. More...

GPUart_Retval gpuI_memcpyHost2Device (void *variable_p, device_global_memory_id_e id_p)
 Copy data from host memory to device memory. More...

GPUart_Retval gpuI_memcpyDevice2Host (void *variable_p, device_global_memory_id_e id_p)
 Copy data from device memory to host memory. More...

GPUart_Retval gpuI_memcpyConstantMemory (void *variable_p, device_constant_memory_id_e id_p)
 Copy data from host memory to constant device memory. More...

GPUart_Retval gpuI_runJob (kernel_task_id_e task_id_e)
 Request the launch of a GPGPU kernel. More...

GPUart_Retval gpuI_preemptJob (kernel_task_id_e task_id_p)

uint32 gpuI_queryKernelIsRunning (kernel_task_id_e task_id_e)

uint32 gpuI_queryKernelTerminatedSuccessful (kernel_task_id_e task_id_e)

uint32 gpuI_queryKernelPreempted (kernel_task_id_e task_id_e)

uint32 gpuI_getJobCosts (kernel_task_id_e task_id_e)

GPUart_Retval gpuI_SetKernelStatusReady (kernel_task_id_e task_id_e)

GPUart_Retval gpuI_get_NrOfMultiprocessors (uint32 *nrOfMultprocessors, uint32 resourceFactor)

GPUart_Retval gpuI_init (void)

GPUart_Retval gpuI_start (void)

GPUart_Retval gpuI_stop (void)

GPUart_Retval gpuI_destroy (void)


Variables

static command_queue_s memory_command_queue_s
 The command queue (stream) for memory operations. More...

static command_queue_s persistent_kernel_command_queue_s
 The command queue (stream) for the persistent kernel. More...

volatile uint32 * perKer_isRunning_u32_host
 A status flag, which represents the running status of the persistent kernel (host pointer). More...

uint32 * perKer_isRunning_u32_g
 A status flag, which represents the running status of the persistent kernel (device pointer). More...

volatile uint32 * perKer_eventQueueCntHost_u32_host
 The index of the tail of the event queue for kernel launches written by the host (host pointer). More...

uint32 * perKer_eventQueueCntHost_u32_g
 The index of the tail of the event queue for kernel launches written by the host (device pointer). More...

volatile uint32 * perKer_eventQueueCntDevice_u32_host
 The index of the head of the event queue for kernel launches written by the device (host pointer). More...

uint32 * perKer_eventQueueCntDevice_u32_g
 The index of the head of the event queue for kernel launches written by the device (device pointer). More...

volatile sint32 * perKer_eventQueue_s32_host
 The event queue for kernel launch requests, written by the CPU and red by the GPU (host pointer). More...

sint32 * perKer_eventQueue_s32_g
 The event queue for kernel launch requests, written by the CPU and red by the GPU (device pointer). More...

volatile uint32 * perKer_kernelTasksRunningStates_u32_host
 A status flag, which represents the running status of each kernel (host pointer). More...

uint32 * perKer_kernelTasksRunningStates_u32_g
 A status flag, which represents the running status of each kernel (device pointer). More...

uint32 max_costs_per_kernel = 0
 The allowed job cost per kernel. More...

sint32 * sob1_matrix_in_s32_g

sint32 * sob1_matrix_in_s32_host

sint32 * sob1_matrix_out_s32_g

sint32 * sob1_matrix_out_s32_host

uint32 * sync_SOB1_flags_in_u32_g

uint32 * sync_SOB1_flags_out_u32_g

sint32 * preempt_SOB1_flag_g

volatile sint32 * preempt_SOB1_flag_host

sint32 * preempt_SOB1_flag_internal_g

sint32 * preempt_SOB1_sm_g

volatile sint32 * preempt_SOB1_sm_host

uint32 * sob1_buffer_loop_counter_u32_g

sint32 * sob2_matrix_in_s32_g

sint32 * sob2_matrix_in_s32_host

sint32 * sob2_matrix_out_s32_g

sint32 * sob2_matrix_out_s32_host

uint32 * sync_SOB2_flags_in_u32_g

uint32 * sync_SOB2_flags_out_u32_g

sint32 * preempt_SOB2_flag_g

volatile sint32 * preempt_SOB2_flag_host

sint32 * preempt_SOB2_flag_internal_g

sint32 * preempt_SOB2_sm_g

volatile sint32 * preempt_SOB2_sm_host

uint32 * sob2_buffer_loop_counter_u32_g

float32 * mm_matrix_A_f32_g

float32 * mm_matrix_A_f32_host

float32 * mm_matrix_B_f32_g

float32 * mm_matrix_B_f32_host

float32 * mm_matrix_C_f32_g

float32 * mm_matrix_C_f32_host

uint32 * sync_MM_flags_in_u32_g

uint32 * sync_MM_flags_out_u32_g

sint32 * preempt_MM_flag_g

volatile sint32 * preempt_MM_flag_host

sint32 * preempt_MM_sm_g

volatile sint32 * preempt_MM_sm_host

uint32 * mm_buffer_blockY_g

uint32 * mm_buffer_blockX_g

uint32 * mm_buffer_M_g

static device_constant_memory_s constant_memory_list_a [E_CM_TOTAL_NR_OF_CONST_MEM_VARIABLES]
 The constant memory table. More...

static device_global_memory_s global_memory_list_a [E_GM_TOTAL_NR_OF_GLOB_MEM_VARIABLES]
 The global memory table. More...

static volatile sint32 ** device_preemption_flags_a [E_KTID_NUMBER_OF_KERNEL_TASKS]
 The preemption flag table. More...

static const sint32 preemption_enabled_a [E_KTID_NUMBER_OF_KERNEL_TASKS]
 The preemption enabled table. More...

static volatile sint32 ** device_kernel_task_SM_a [E_KTID_NUMBER_OF_KERNEL_TASKS]
 The kernel state machine table. More...

static uint32 nb_of_StateMachines_in_kernel_a [E_KTID_NUMBER_OF_KERNEL_TASKS]
 The number of state machines table. More...

static uint8 kernel_job_costs [E_KTID_NUMBER_OF_KERNEL_TASKS]
 The job cost table. More...

static uint8 gpuI_deviceID_u8 = 0
 The device ID of the used GPU. More...


Detailed Description

Implementation of the management component of the GPUart Implemenation layer.

This file concentrates all GPGPU related memory declarations and allocations, memory transfers operations, kernel launches, kernel initialisations, and GPU related implementation details.

Author
Christoph Hartmann
Date
Created on: 7 Apr 2017

Macro Definition Documentation

#define C_PERSISTENT_KERNEL_EVENT_QUEUE_LENGTH   (10)

The length of the Event Queue, shared between GPU and CPU, used for kernel launch events.

See Also
perKer_eventQueueCntHost_u32_host
perKer_eventQueueCntDevice_u32_host
perKer_eventQueue_s32_host
#define C_PERSISTENT_KERNEL_TERMINATE   (-1)

Event ID to indicate a termination request for the persistent kernel.

See Also
perKer_eventQueueCntHost_u32_host
perKer_eventQueueCntHost_u32_g
#define S_USE_ZERO_COPY_FOR_GLOBAL_APPLICATION_MEMORY

Use zero copy memory (requires integrated GPU)

This MUST be defined so far, since memory transfers over PCIe are currently not implemented completely.

See Also
http://docs.nvidia.com/cuda/cuda-c-programming-guide/index.html#zero-copy-memory
https://software.intel.com/en-us/articles/getting-the-most-from-opencl-12-how-to-increase-performance-by-minimizing-buffer-copies-on-intel-processor-graphics

Typedef Documentation

typedef cudaStream_t command_queue_s

Typedef for command queues (streams) to abstract GPGPU-API.

Command queues are required to improve the concurrency of memory and kernel operatation on the GPU.

See Also
https://developer.download.nvidia.com/CUDA/training/StreamsAndConcurrencyWebinar.pdf
https://www.khronos.org/registry/OpenCL/sdk/1.0/docs/man/xhtml/clCreateCommandQueue.html

Function Documentation

__global__ void GPUart_Persistent_Kernel ( uint32 *__restrict__  perKer_isRunning_u32_g,
uint32 *__restrict__  perKer_eventQueueCntDevice_u32_g,
volatile uint32 *__restrict__  perKer_eventQueueCntHost_u32_g,
volatile sint32 *__restrict__  perKer_eventQueue_s32_g,
volatile uint32 *__restrict__  perKer_kernelTasksRunningStates_u32_g,
sint32 *__restrict__  sob1_matrix_in_s32_g,
sint32 *__restrict__  sob1_matrix_out_s32_g,
sint32 *__restrict__  sob2_matrix_in_s32_g,
sint32 *__restrict__  sob2_matrix_out_s32_g,
float32 *__restrict__  mm_matrix_A_f32_g,
float32 *__restrict__  mm_matrix_B_f32_g,
float32 *__restrict__  mm_matrix_C_f32_g,
uint32 *__restrict__  sync_SOB1_flags_in_u32_g,
uint32 *__restrict__  sync_SOB1_flags_out_u32_g,
uint32 *__restrict__  sync_SOB2_flags_in_u32_g,
uint32 *__restrict__  sync_SOB2_flags_out_u32_g,
uint32 *__restrict__  sync_MM_flags_in_u32_g,
uint32 *__restrict__  sync_MM_flags_out_u32_g,
sint32 *__restrict__  preempt_SOB1_flag_g,
sint32 *__restrict__  preempt_SOB1_flag_internal_g,
sint32 *__restrict__  preempt_SOB1_sm_g,
sint32 *__restrict__  preempt_SOB2_flag_g,
sint32 *__restrict__  preempt_SOB2_flag_internal_g,
sint32 *__restrict__  preempt_SOB2_sm_g,
sint32 *__restrict__  preempt_MM_flag_g,
sint32 *__restrict__  preempt_MM_sm_g,
uint32 *__restrict__  sob1_buffer_loop_counter_u32_g,
uint32 *__restrict__  sob2_buffer_loop_counter_u32_g,
uint32 *__restrict__  mm_buffer_blockY_g,
uint32 *__restrict__  mm_buffer_blockX_g,
uint32 *__restrict__  mm_buffer_M_g
)

The persistent kernel (GPU Daemon) which is used to reduce kernel launch latencies.

The kernel arguments must include all global memory buffers of all kernels in this system, since this kernel is used to launch GPGPU kernel on demand. The persistent kernel reduces kernel launch latencies by bypassing the GPGPU driver stack when launching kernels.

See Also
Mrozek et al. GPU Daemon: Road to zero cost submission, in Proceedings of the 4th International Workshop on OpenCL, Vienna, Austria, 2016 -> https://dl.acm.org/citation.cfm?id=2909450
GPUart_Retval gpuI_destroy ( void  )

Here is the caller graph for this function:

GPUart_Retval gpuI_get_NrOfMultiprocessors ( uint32 *  nrOfMultprocessors,
uint32  resourceFactor
)

Here is the caller graph for this function:

uint32 gpuI_getJobCosts ( kernel_task_id_e  task_id_e)

Here is the caller graph for this function:

GPUart_Retval gpuI_init ( void  )

Here is the caller graph for this function:

GPUart_Retval gpuI_memcpyConstantMemory ( void *  variable_p,
device_constant_memory_id_e  id_p
)

Copy data from host memory to constant device memory.

The copy is only possible if persistent GPUart kernel GPUart_Persistent_Kernel is not running, since a constant memory data is immutable during kernel execution and its value is inherited from parent to child kernel.

Parameters
[in]void* variable_p -> The host variable to be copied
[in]device_constant_memory_id_eid_p -> The ID of the constant memory buffer
Returns
GPUART_SUCCESS if memory copy operation has been successfully.
GPUART_ERROR_INVALID_ARGUMENT if id_p is an invalid ID.
GPUart_Retval gpuI_memcpyDevice2Host ( void *  variable_p,
device_global_memory_id_e  id_p
)

Copy data from device memory to host memory.

Device memory may be shared physical memory or discrete device memory. The device driver API call may depend on the type of device memory (global or texture memory).

Parameters
[out]void* variable_p -> The host variable to be written
[in]device_global_memory_id_eid_p -> The ID of the global memory variable
Returns
GPUART_SUCCESS if memory copy operation has been successfully.
GPUART_ERROR_INVALID_ARGUMENT if id_p is an invalid ID.

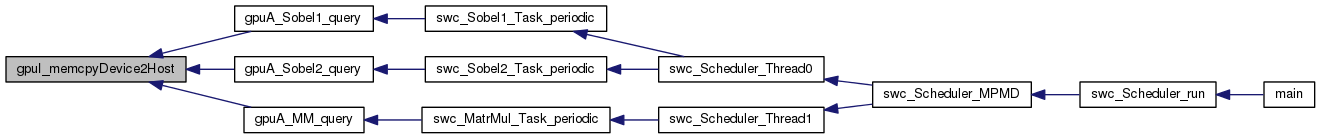

Here is the caller graph for this function:

GPUart_Retval gpuI_memcpyHost2Device ( void *  variable_p,
device_global_memory_id_e  id_p
)

Copy data from host memory to device memory.

Device memory may be shared physical memory or discrete device memory. The device driver API call may depend on the type of device memory (global or texture memory).

Parameters
[in]void* variable_p -> The host variable to be copied
[in]device_global_memory_id_eid_p -> The ID of the global memory variable
Returns
GPUART_SUCCESS if memory copy operation has been successfully.
GPUART_ERROR_INVALID_ARGUMENT if id_p is an invalid ID.

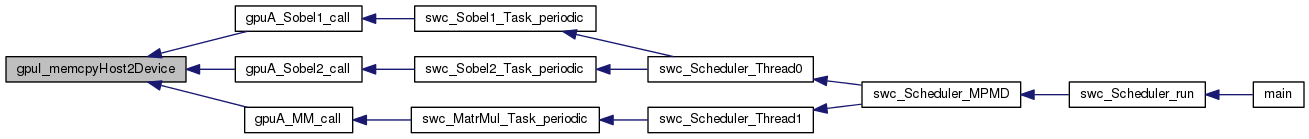

Here is the caller graph for this function:

GPUart_Retval gpuI_preemptJob ( kernel_task_id_e  task_id_p)

Here is the caller graph for this function:

uint32 gpuI_queryKernelIsRunning ( kernel_task_id_e  task_id_e)
uint32 gpuI_queryKernelPreempted ( kernel_task_id_e  task_id_e)

Here is the caller graph for this function:

uint32 gpuI_queryKernelTerminatedSuccessful ( kernel_task_id_e  task_id_e)

Here is the caller graph for this function:

GPUart_Retval gpuI_runJob ( kernel_task_id_e  task_id_e)

Request the launch of a GPGPU kernel.

Parameters
kernel_task_id_etask_id_e -> The ID of the kernel to be launched.
Returns
GPUART_SUCCESS if kernel launch has been successfully.
GPUART_ERROR_NOT_READY if launch request is already active.

Here is the caller graph for this function:

GPUart_Retval gpuI_SetKernelStatusReady ( kernel_task_id_e  task_id_e)

Here is the caller graph for this function:

GPUart_Retval gpuI_start ( void  )

Here is the caller graph for this function:

GPUart_Retval gpuI_stop ( void  )

Here is the caller graph for this function:

Variable Documentation

device_constant_memory_s constant_memory_list_a[E_CM_TOTAL_NR_OF_CONST_MEM_VARIABLES]
static
Initial value:
=
{
}

The constant memory table.

All constant memory buffers which must be written during runtime must be defined here. The i'th element represents the i'th constant memory buffer, define by device_constant_memory_id_e in GPUart_Config.h. Each element must defined in the following style: { (void **)& CONSTANT_BUFFER_NAME, SIZE_IN_BYTES }.

See Also
device_constant_memory_id_e
volatile sint32** device_kernel_task_SM_a[E_KTID_NUMBER_OF_KERNEL_TASKS]
static
Initial value:
=
{
&preempt_SOB1_sm_host,
&preempt_SOB2_sm_host,
&preempt_MM_sm_host
}
preempt_MM_sm_host
volatile sint32 * preempt_MM_sm_host
Definition: GPUart_Impl.cu:287
preempt_SOB2_sm_host
volatile sint32 * preempt_SOB2_sm_host
Definition: GPUart_Impl.cu:266
preempt_SOB1_sm_host
volatile sint32 * preempt_SOB1_sm_host
Definition: GPUart_Impl.cu:246

The kernel state machine table.

The i'th element represents the i'th kernel, according to the enum kernel_task_id_e in GPUart_Config.h. Each element must defined in the following style: &NAME_OF_STATE_MACHINE_POINTER. Use NULL if the related kernel is non-preemptive.

See Also
kernel_task_id_e
volatile sint32** device_preemption_flags_a[E_KTID_NUMBER_OF_KERNEL_TASKS]
static
Initial value:
=
{
(volatile sint32**) &preempt_SOB1_flag_host,
(volatile sint32**) &preempt_SOB2_flag_host,
(volatile sint32**) &preempt_MM_flag_host
}
preempt_SOB2_flag_host
volatile sint32 * preempt_SOB2_flag_host
Definition: GPUart_Impl.cu:263
preempt_MM_flag_host
volatile sint32 * preempt_MM_flag_host
Definition: GPUart_Impl.cu:285
sint32
signed int sint32
Definition: GPUart_Common.h:79
preempt_SOB1_flag_host
volatile sint32 * preempt_SOB1_flag_host
Definition: GPUart_Impl.cu:243

The preemption flag table.

All preemption flags must be included by this table. The i'th element represents the i'th kernel, according to the enum kernel_task_id_e in GPUart_Config.h. Each element must defined in the following style: (volatile sint32**)& NAME_OF_PREEMPTION_FLAG_POINTER. If a kernel does not implement a preemption flag, because it is non-preemptive, insert a NULL.

See Also
kernel_task_id_e
device_global_memory_s global_memory_list_a[E_GM_TOTAL_NR_OF_GLOB_MEM_VARIABLES]
static
Initial value:
=
{
{ (void **)&sob1_matrix_in_s32_g, (void **)&sob1_matrix_in_s32_host, C_SOB1_MATRIX_SIZE * sizeof(sint32) },
{ (void **)&sob1_matrix_out_s32_g, (void **)&sob1_matrix_out_s32_host, C_SOB1_MATRIX_SIZE * sizeof(sint32) },
{ (void **)&sob2_matrix_in_s32_g, (void **)&sob2_matrix_in_s32_host, C_SOB2_MATRIX_SIZE * sizeof(sint32) },
{ (void **)&sob2_matrix_out_s32_g, (void **)&sob2_matrix_out_s32_host, C_SOB2_MATRIX_SIZE * sizeof(sint32) },
{ (void **)&mm_matrix_A_f32_g, (void **)&mm_matrix_A_f32_host, C_MM_MATRIX_TOTAL_SIZE * sizeof(sint32) },
{ (void **)&mm_matrix_B_f32_g, (void **)&mm_matrix_B_f32_host, C_MM_MATRIX_TOTAL_SIZE * sizeof(sint32) },
{ (void **)&mm_matrix_C_f32_g, (void **)&mm_matrix_C_f32_host, C_MM_MATRIX_TOTAL_SIZE * sizeof(sint32) }
}
C_SOB2_MATRIX_SIZE
#define C_SOB2_MATRIX_SIZE
Definition: GPUart_Sobel.cuh:94
sob1_matrix_in_s32_host
sint32 * sob1_matrix_in_s32_host
Definition: GPUart_Impl.cu:234
mm_matrix_A_f32_g
float32 * mm_matrix_A_f32_g
Definition: GPUart_Impl.cu:275
C_MM_MATRIX_TOTAL_SIZE
#define C_MM_MATRIX_TOTAL_SIZE
Definition: GPUart_MatrMul.cuh:69
sob2_matrix_in_s32_g
sint32 * sob2_matrix_in_s32_g
Definition: GPUart_Impl.cu:254
sob1_matrix_in_s32_g
sint32 * sob1_matrix_in_s32_g
Definition: GPUart_Impl.cu:234
sob1_matrix_out_s32_host
sint32 * sob1_matrix_out_s32_host
Definition: GPUart_Impl.cu:235
C_SOB1_MATRIX_SIZE
#define C_SOB1_MATRIX_SIZE
Definition: GPUart_Sobel.cuh:69
sob2_matrix_out_s32_g
sint32 * sob2_matrix_out_s32_g
Definition: GPUart_Impl.cu:255
sint32
signed int sint32
Definition: GPUart_Common.h:79
mm_matrix_B_f32_g
float32 * mm_matrix_B_f32_g
Definition: GPUart_Impl.cu:276
sob1_matrix_out_s32_g
sint32 * sob1_matrix_out_s32_g
Definition: GPUart_Impl.cu:235
mm_matrix_C_f32_host
float32 * mm_matrix_C_f32_host
Definition: GPUart_Impl.cu:277
sob2_matrix_in_s32_host
sint32 * sob2_matrix_in_s32_host
Definition: GPUart_Impl.cu:254
mm_matrix_C_f32_g
float32 * mm_matrix_C_f32_g
Definition: GPUart_Impl.cu:277
sob2_matrix_out_s32_host
sint32 * sob2_matrix_out_s32_host
Definition: GPUart_Impl.cu:255
mm_matrix_A_f32_host
float32 * mm_matrix_A_f32_host
Definition: GPUart_Impl.cu:275
mm_matrix_B_f32_host
float32 * mm_matrix_B_f32_host
Definition: GPUart_Impl.cu:276

The global memory table.

All global memory buffers which must be written or red during runtime must be defined here. The i'th element represents the i'th global memory buffer, define by device_global_memory_id_e in GPUart_Config.h. Each element must defined in the following style: { (void **)& GLOBAL_MEMORY_BUFFER_POINTER_DEVICE, GLOBAL_MEMORY_BUFFER_POINTER_HOST, SIZE_IN_BYTES }.

See Also
device_global_memory_id_e
uint8 gpuI_deviceID_u8 = 0
static

The device ID of the used GPU.

See Also
http://docs.nvidia.com/cuda/cuda-c-programming-guide
https://www.khronos.org/registry/OpenCL/sdk/1.0/docs/man/xhtml/clGetDeviceIDs.html
uint8 kernel_job_costs[E_KTID_NUMBER_OF_KERNEL_TASKS]
static
Initial value:
=
{
C_SOB1_NUMBER_OF_BLOCKS,
C_SOB2_NUMBER_OF_BLOCKS,
C_MM_NUMBER_OF_BLOCKS
}
C_SOB1_NUMBER_OF_BLOCKS
#define C_SOB1_NUMBER_OF_BLOCKS
Definition: GPUart_Sobel.cuh:53
C_MM_NUMBER_OF_BLOCKS
#define C_MM_NUMBER_OF_BLOCKS
Definition: GPUart_MatrMul.cuh:57
C_SOB2_NUMBER_OF_BLOCKS
#define C_SOB2_NUMBER_OF_BLOCKS
Definition: GPUart_Sobel.cuh:78

The job cost table.

The i'th element represents the i'th kernel, according to the enum kernel_task_id_e in GPUart_Config.h. Each element represents the job costs of the related kernel. If a thread block of a kernel requires more then 1/µ of the available registers, shared memory, thread residency slots, or thread block residency slots of an Streaming Multiprocessor, then set corresponding value to m * µ, whereby µ is the resource factor and m is the GPU's number of Streaming Multiprocessors. If a thread block of a kernel requires less then 1/µ of each resource type, then set the corresponding value to the kernels number of thread blocks.

See Also
kernel_task_id_e
C_GPUS_RESOURCE_FACTOR
gpuS_nrOfMultiprocessor_u32
max_costs_per_kernel
uint32 max_costs_per_kernel = 0

The allowed job cost per kernel.

This value is equal to m * µ, whereby m is the number of Streaming Multiprocessors of the GPU gpuS_nrOfMultiprocessor_u32 and µ is the resource factor C_GPUS_RESOURCE_FACTOR.

See Also
kernel_task_id_e
C_GPUS_RESOURCE_FACTOR
gpuS_nrOfMultiprocessor_u32
kernel_job_costs
command_queue_s memory_command_queue_s
static

The command queue (stream) for memory operations.

uint32* mm_buffer_blockX_g
uint32* mm_buffer_blockY_g
uint32* mm_buffer_M_g
float32* mm_matrix_A_f32_g
float32 * mm_matrix_A_f32_host
float32* mm_matrix_B_f32_g
float32 * mm_matrix_B_f32_host
float32* mm_matrix_C_f32_g
float32 * mm_matrix_C_f32_host
uint32 nb_of_StateMachines_in_kernel_a[E_KTID_NUMBER_OF_KERNEL_TASKS]
static
Initial value:
=
{
1u,
1u,
C_MM_NUMBER_OF_BLOCKS
}
C_MM_NUMBER_OF_BLOCKS
#define C_MM_NUMBER_OF_BLOCKS
Definition: GPUart_MatrMul.cuh:57

The number of state machines table.

The i'th element represents the i'th kernel, according to the enum kernel_task_id_e in GPUart_Config.h. Each element must defined in the following style: NUMBER_OF_SM_IN_KERNEL. If a kernel preempts grid-synchronous then use the value 1u. If a kernel preempts thread-block synchronous then use the number of thread blocks of this kernel. If a kernel is non-preemptive then use 0u.

See Also
kernel_task_id_e
perKer_eventQueue_s32_g

The event queue for kernel launch requests, written by the CPU and red by the GPU (device pointer).

To request a kernel launch, write the kernel's ID (kernel_task_id_e) into the tail of the queue. Write C_PERSISTENT_KERNEL_TERMINATE to terminate the persistent kernel GPUart_Persistent_Kernel.

See Also
perKer_eventQueue_s32_host
perKer_eventQueue_s32_host

The event queue for kernel launch requests, written by the CPU and red by the GPU (host pointer).

To request a kernel launch, write the kernel's ID (kernel_task_id_e) into the tail of the queue. Write C_PERSISTENT_KERNEL_TERMINATE to terminate the persistent kernel GPUart_Persistent_Kernel.

See Also
perKer_eventQueue_s32_g
perKer_eventQueueCntDevice_u32_g

The index of the head of the event queue for kernel launches written by the device (device pointer).

See Also
perKer_eventQueueCntDevice_u32_host
perKer_eventQueueCntDevice_u32_host

The index of the head of the event queue for kernel launches written by the device (host pointer).

See Also
perKer_eventQueueCntDevice_u32_g
perKer_eventQueueCntHost_u32_g

The index of the tail of the event queue for kernel launches written by the host (device pointer).

See Also
perKer_eventQueueCntHost_u32_host
perKer_eventQueueCntHost_u32_host

The index of the tail of the event queue for kernel launches written by the host (host pointer).

See Also
perKer_eventQueueCntDevice_u32_g
perKer_isRunning_u32_g

A status flag, which represents the running status of the persistent kernel (device pointer).

See Also
perKer_isRunning_u32_host
perKer_isRunning_u32_host

A status flag, which represents the running status of the persistent kernel (host pointer).

See Also
perKer_isRunning_u32_g
perKer_kernelTasksRunningStates_u32_g

A status flag, which represents the running status of each kernel (device pointer).

See Also
perKer_kernelTasksRunningStates_u32_host
perKer_kernelTasksRunningStates_u32_host

A status flag, which represents the running status of each kernel (host pointer).

See Also
perKer_kernelTasksRunningStates_u32_g
command_queue_s persistent_kernel_command_queue_s
static

The command queue (stream) for the persistent kernel.

sint32* preempt_MM_flag_g
volatile sint32* preempt_MM_flag_host
sint32* preempt_MM_sm_g
volatile sint32* preempt_MM_sm_host
sint32* preempt_SOB1_flag_g
volatile sint32* preempt_SOB1_flag_host
sint32* preempt_SOB1_flag_internal_g
sint32* preempt_SOB1_sm_g
volatile sint32* preempt_SOB1_sm_host
sint32* preempt_SOB2_flag_g
volatile sint32* preempt_SOB2_flag_host
sint32* preempt_SOB2_flag_internal_g
sint32* preempt_SOB2_sm_g
volatile sint32* preempt_SOB2_sm_host
const sint32 preemption_enabled_a[E_KTID_NUMBER_OF_KERNEL_TASKS]
static
Initial value:
=
{
C_TRUE,
C_TRUE,
C_TRUE
}
C_TRUE
#define C_TRUE
TRUE condition definition.
Definition: GPUart_Common.h:67

The preemption enabled table.

The i'th element represents the i'th kernel, according to the enum kernel_task_id_e in GPUart_Config.h. Each element must defined in the following style: C_TRUE if the related kernel is preemptive; C_FALSE if the related kernel is non-preemptive.

See Also
kernel_task_id_e
uint32* sob1_buffer_loop_counter_u32_g
sint32* sob1_matrix_in_s32_g
sint32 * sob1_matrix_in_s32_host
sint32* sob1_matrix_out_s32_g
sint32 * sob1_matrix_out_s32_host
uint32* sob2_buffer_loop_counter_u32_g
sint32* sob2_matrix_in_s32_g
sint32 * sob2_matrix_in_s32_host
sint32* sob2_matrix_out_s32_g
sint32 * sob2_matrix_out_s32_host
uint32* sync_MM_flags_in_u32_g
uint32* sync_MM_flags_out_u32_g
uint32* sync_SOB1_flags_in_u32_g
uint32* sync_SOB1_flags_out_u32_g
uint32* sync_SOB2_flags_in_u32_g
uint32* sync_SOB2_flags_out_u32_g
Generated on Mon Feb 26 2018 11:06:58 for GPUart by   doxygen 1.8.6
